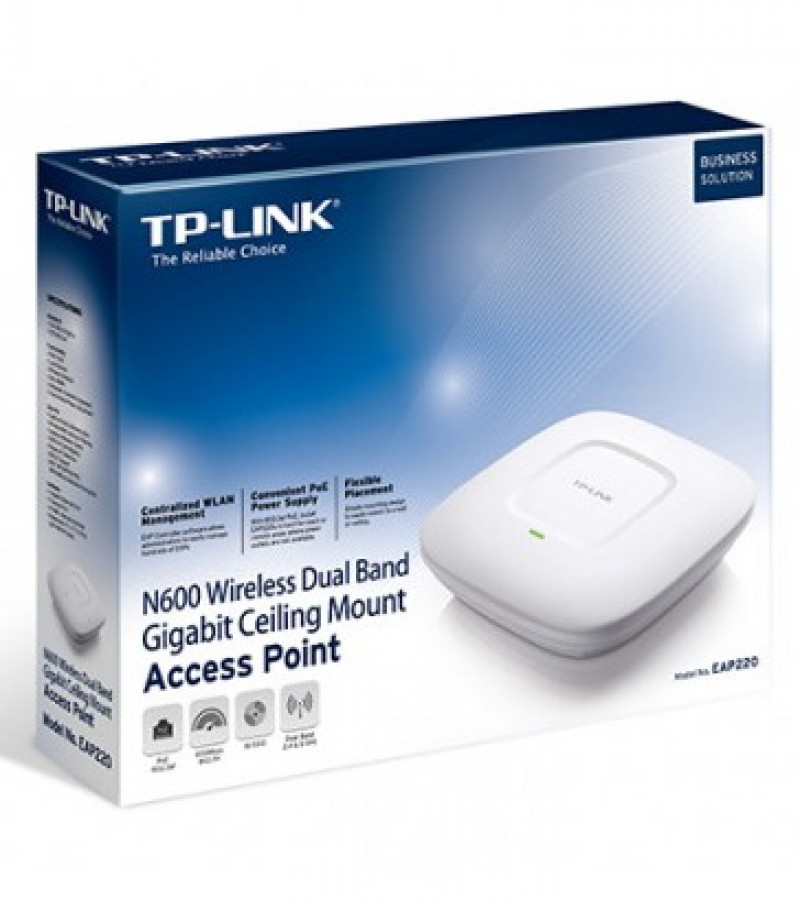

TP-Link N600 Wireless Gigabit Ceiling Mount Access Point

Out Of Stock

Out Of Stock

Please choose other variant.

  • Shop FPL Verified seller

  • Reviews
    (987)

    99% Positive

  • This shop is temporarily closed!

Colors

Size

Please Select Size

Quantity

Overview

  • SKU: TFWR7629939

  • Brand: Tplink

  • Material: Plastic

  • Condition: Brand New

  • Delivery: 2 - 6 Days

  • Weight: 500 g

  • Pkg dimensions: 25*20*15 cm

Services

  • Need help: 0309-4626750

  • Protection: Guarantee

  • Shop: Trusted Shops Only

  • Delivery: All Over Pakistan

  • Payment: COD, Jazz Cash, Easy Paisa, VISA Card, Master Card

Key Features

  • HARDWARE FEATURES
  • Interface
  • Gigabit Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)
  • Console Port *1
  • Button
  • Reset, Power On/Off
  • Power Supply
  • PoE or External 12VDC / 1.5A Power Supply
  • Power Consumption
  • 9.6 W
  • Dimensions ( W x D x H )
  • 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
  • Antenna Type
  • Internal 4* 4dBi Omni
  • Mounting
  • Ceiling /Wall Mounting (Kits included)
  • Physical Security Lock
  • Kensington Lock Slot
  • Watch Dog
  • Yes
  • WIRELESS FEATURES
  • Wireless Standards
  • IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
  • Frequency
  • 2.4GHz and 5GHz
  • Signal Rate
  • 11n: Up to 300Mbps(dynamic)
  • 11g: Up to 54Mbps(dynamic)
  • 11b: Up to 11Mbps(dynamic)
  • Reception Sensitivity
  • 5GHz
  • 300M:-68dBm@10%PER
  • 150M:-72dBm@10%PER
  • 54M:-73dBm@10%PER
  • 2.4GHz
  • 300M: -71dBm@10% PER
  • 150M: -75dBm@10% PER
  • 54M: -78dBm@10% PER
  • 11M: -93dBm@8% PER
  • 6M: -92dBm@10% PER
  • 1M: -96dBm@8% PER
  • Transmit Power
  • FCC:
  • <26dBm(2.4GHz)
  • <20dBm(5GHz)
  • CE:
  • <20dBm
  • Wireless Functions
  • Multiple SSIDs (Up to 16 SSIDs)
  • Enable/Disable Wireless Radio
  • Automatic Channel Assignment
  • Transmit Power Control (Adjust Transmit Power on dBm)
  • QoS(WMM)
  • Rate Limit
  • Reboot Schedule
  • Wireless Schedule
  • Wireless Statistics based on SSID/AP/Client
  • Wireless Security
  • Captive Portal Authentication
  • Access Control
  • Wireless Mac Address Filtering
  • Wireless Isolation Between Clients
  • SSID to VLAN Mapping
  • Rogue AP Detection
  • 802.1X Support
  • 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
  • MANAGEMENT
  • EAP Controller Software
  • Yes
  • Email Alerts
  • Yes
  • LED ON/OFF Control
  • Yes
  • Management MAC Access Control
  • Yes
  • SNMP
  • v1,v2c
  • System Logging Local/Remote Syslog
  • Local/Remote Syslog
  • Telnet
  • Yes
  • Web-based Management
  • HTTP/HTTPS
  • CLI (Command Line Interface)
  • Management VLAN
  • Yes
  • OTHERS
  • Certification
  • CE, FCC, RoHS
  • Package Contents
  • N600 Wireless Gigabit Ceiling Mount Access Point Auranet EAP220
  • Power Adapter
  • Mounting Kits
  • Resource CD
  • Installation Guide
  • System Requirements
  • Microsoft Windows XP, Vista, Windows 7, 8, 10
  • Environment
  • Operating Temperature: 0℃~40℃ (32℉~104℉)
  • Storage Temperature: -40℃~70℃ (-40℉~158℉)
  • Operating Humidity: 10%~90% non-condensing
  • Storage Humidity: 5%~90% non-condensing

Product Detail

Flexible Placement
Easy mounting design & PoE
The EAP’s “ceiling lamp” appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP series APs support Power over Ethernet (PoE) to make deployment effortless and flexible.
Business Class Wireless
Powerful Hardware
EAP features 802.11n Wi-Fi and 2*2 MIMO technology - EAP220 supports simultaneous dual band in 2.4 and 5GHz for 600Mbps wireless speeds
EAP120’s wireless speeds of up to 300Mbps
Gigabit Ethernet port ensures high speed
Internet access
With Qualcomm Atheros 560MHz chipsets ,
EAP ensures incredible wireless coverage and reliability
Centralized Wi-Fi Management
Management Software
The free controller software allows administrators to easy manage up to hundreds of EAPs through a single IP to like an Access Controller.
Efficient Guest Authentication Captive Portal
Captive portal provides one convenient method of authentication for Wi-Fi guests. A captive portal requires users to perform certain actions before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator, which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password.
Applicable to Multi-user Environment
Designed for Business Performance
With easy mounting design, PoE power supply, Cluster feature, Centralized management software, Captive portal, Auto RF management, and business hardware, EAP series are specially designed for the high-density, most demanding business environments, including schools, hotels, and enterprises.

What Is In The Box

1 X TP-Link N600 Wireless Gigabit Ceiling Mount Access Point
