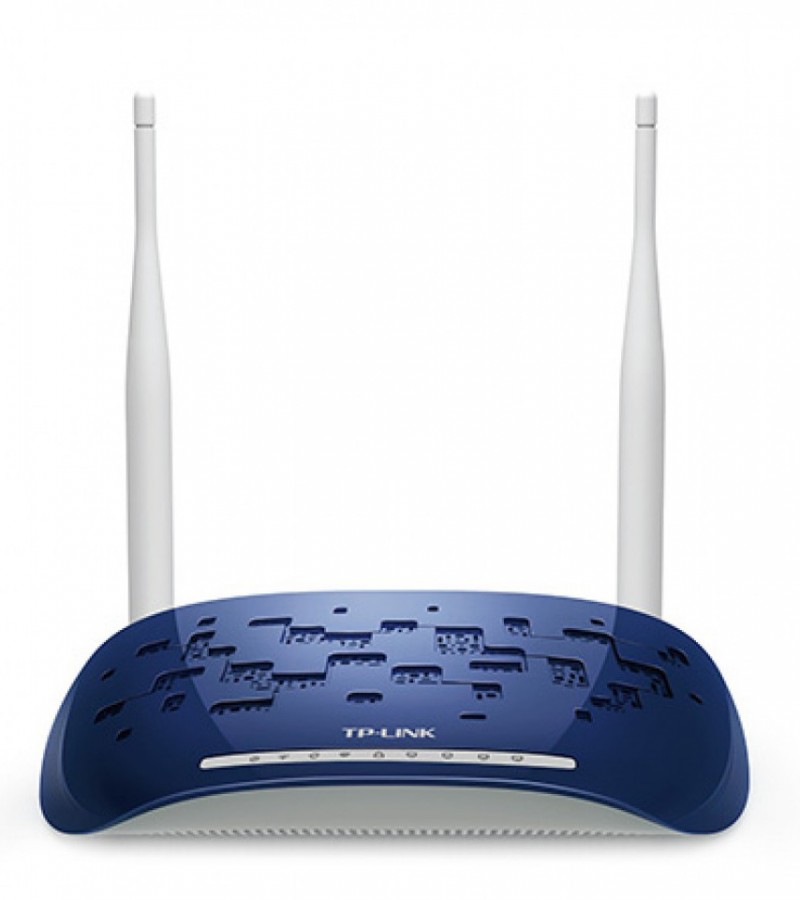

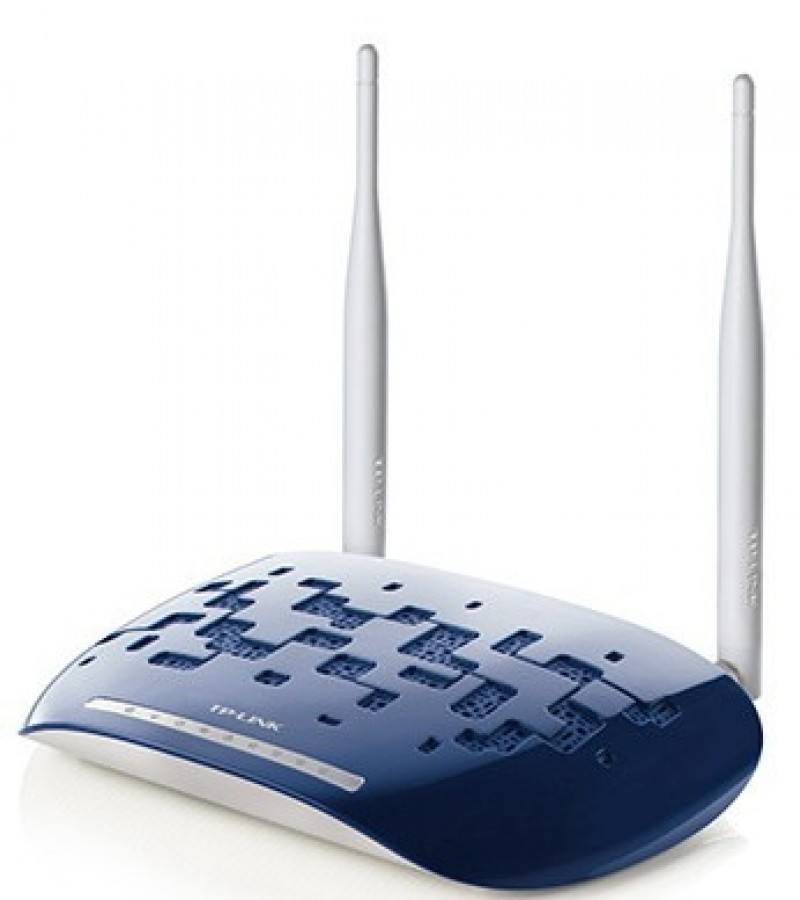

TP-Link 300Mbps Wireless N ADSL2+ Modem Router (TD-W8960N)

HARDWARE FEATURES

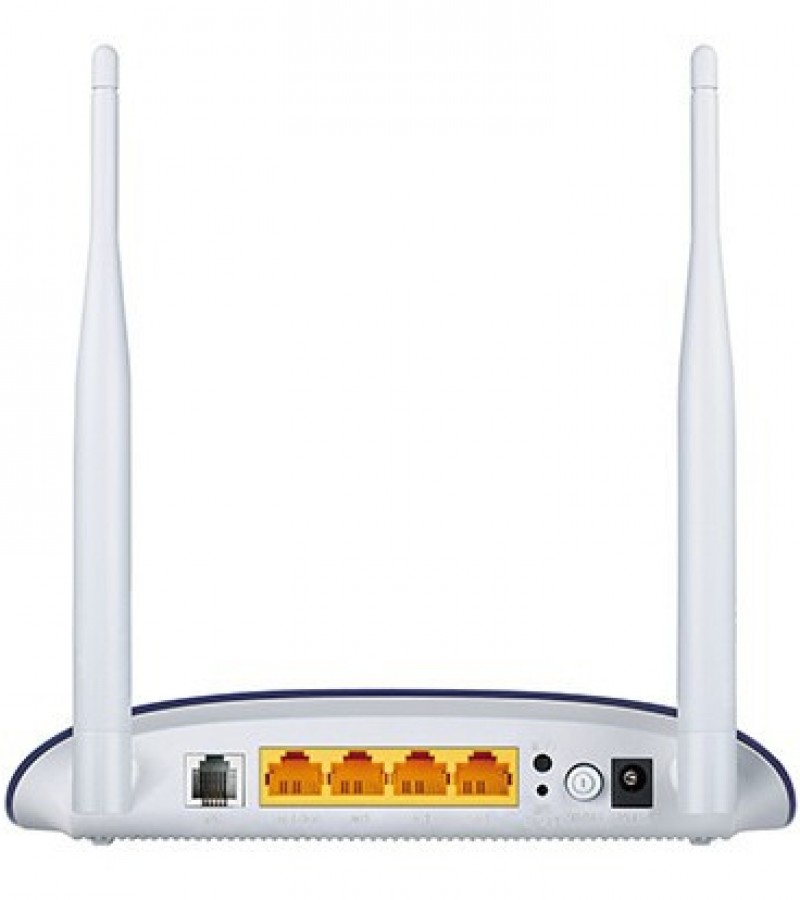

Interface

1 10/100Mbps RJ45 WAN/LAN Port

3 10/100Mbps RJ45 LAN Ports

1 RJ11 Port

Button

1 Power On/Off Button

1 Wi-Fi On/Off Button

1 WPS Button

1 RESET Button

External Power Supply

9VDC/0.85A

IEEE Standards

IEEE 802.3, 802.3u

ADSL Standards

Full-rate ANSI T1.413 Issue 2

ITU-T G.992.1(G.DMT) , ITU-T G.992.2(G.Lite)

ITU-T G.994.1 (G.hs), ITU-T G.995.1

ADSL2 Standards

ITU-T G.992.3 (G.dmt.bis),

ITU-T G.992.4 (G.lite.bis)

ADSL2+ Standards

ITU-T G.992.5

Dimensions ( W x D x H )

7.7×5.1×1.4in.(195×130×36mm)

Antenna Type

Omni directional, Fixed

Antenna Gain

2×5dBi

WIRELESS FEATURES

Wireless Standards

IEEE 802.11b, 802.11g, 802.11n

Wireless Speeds

Up to 300Mbps

Frequency

2.400-2.4835GHz

Transmit Power

<20dBm(EIRP)

Wireless Functions

Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security

64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption, Wireless MAC Filtering

SOFTWARE FEATURES

Quality of Service

QoS Remarking based on IPP/ToS, DSCP, 802.1p

ATM QoS,Traffic Control(IP QoS)

Security

NAT Firewall, LAN Side Firewall, MAC / IP / URL Filtering, Denial of Service(DoS), SYN Flooding, Ping of Death

IP and MAC Address Binding

Operating Modes

ADSL Modem Router, Wireless Router

Management

Web Based Configuration(HTTP), Remote management,

Command Line Interface,

SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools

DHCP

Server, Client, DHCP Client List,

Address Reservation, DHCP relay

Port Forwarding

Virtual server, Port Triggering, DMZ, ALG

Dynamic DNS

DynDns, NO-IP

VPN Pass-Through

PPTP, L2TP, IPSec Pass-through

Protocols

Support IPv6 and IPv4

ATM/PPP Protocols

ATM Forum UNI3.1/4.0,

PPP over ATM (RFC 2364),

PPP over Ethernet (RFC2516),

IPoA (RFC1577/2225),

MER\IPoE (RFC 1483 Routed)

Bridge (RFC1483 Bridge)

PVC – Up to 8 PVCs

Advanced Features

Parental Control

Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt;

Network Address Translation (NAT); Port Mapping (Grouping)

VLAN, Static Routing, RIP v1/v2 (optional);

DNS Relay, DDNS, IGMP snooping V1/2, IGMP Multicast, UPnP

Wireless Schedule

Support 2.4GHz Wireless Schedule

Guest Network

2.4GHz Guest Network x 1

IPSec VPN

Supports up to 10 IPSec VPN tunnels

OTHERS

Certification

CE, FCC, RoHS

Package Contents

TD-W8960N

External Splitter

RJ-11 Telephone Cable

RJ-45 Ethernet Cable

Quick Installation Guide

Resource CD

Power Adapter

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7, Windows 8, MAC® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
